Specter

With firmware versions V1.1.1 (BTC-Only) or newer, you can set Specter V1.4.6 or newer as a watch-only wallet that functions as the companion app for Keystone Essential or Pro.

I. Preparation

1. Firmware version V1.1.1 (BTC-Only) or newer running on Keystone Essential or Pro.

(Please read How to upgrade firmware for more details.)

2. Specter V1.4.6 or newer installed and running on PC/Mac.

3. MicroSD card (FAT32 format, capacity not exceeding 512 GB).

How to Format a MicroSD Card to FAT32?

II. Creating a Specter Watch-Only Wallet (BTC-Only)

A. Add Keystone Device on Specter

1. Click [+ Add new device] > Select your device type [Keystone] and enter the name.

Keystone-Specter-1
Keystone-Specter-2

2. You can choose to use a QR code or import a .json file to get the Xpub of the recovery phrase imported to Keystone.

- Option 1: Via QR code

1) Keystone > [Menu] > [Watch-Only Wallet] > Select [Generic Wallet] and Touch [Confirm] > Touch [•••] > Select [Export Wallet] and show the QR code.

Keystone-Specter-3

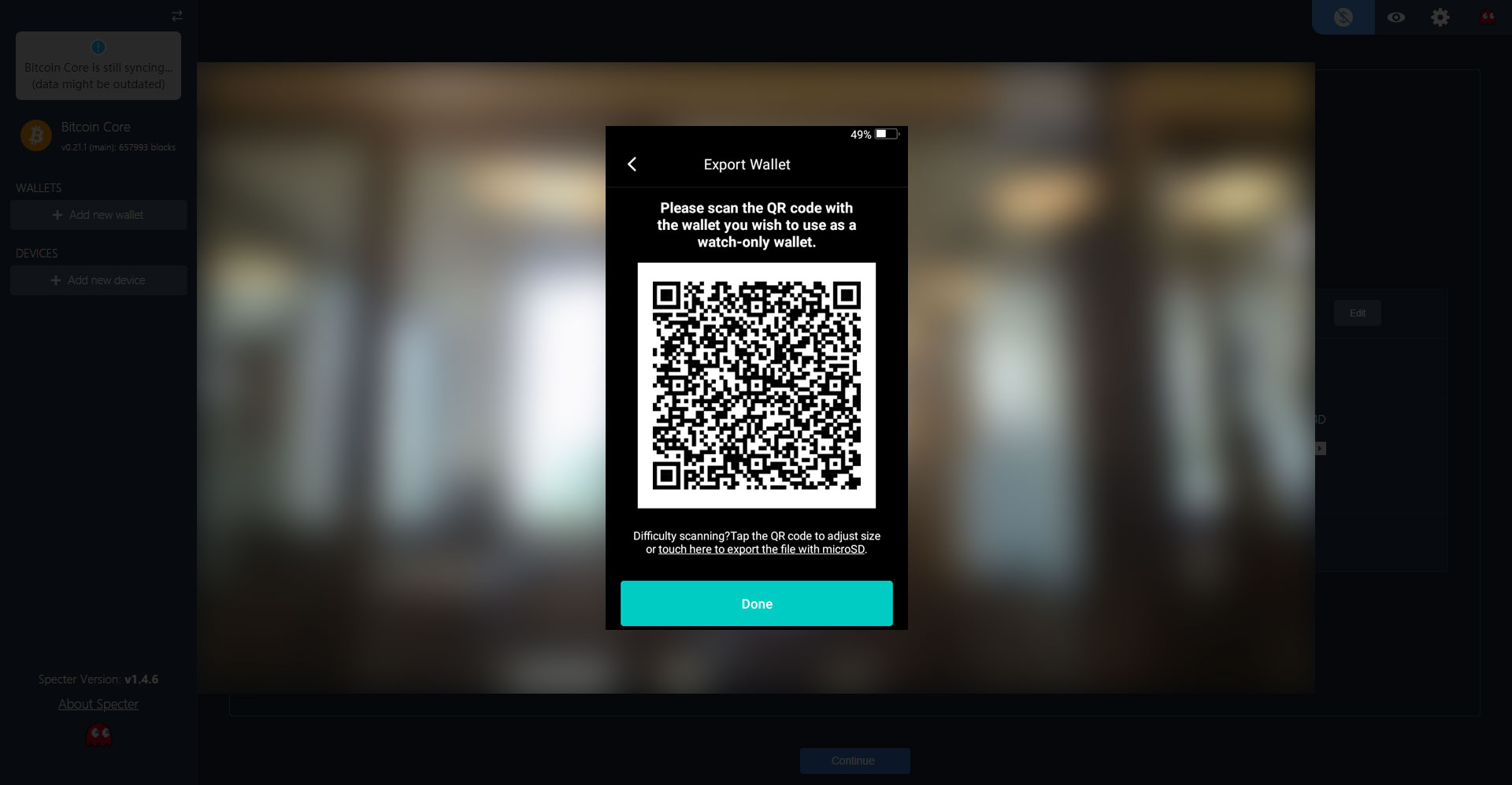

2) Specter > click [Scan QR Code], then scan the QR code shown on Keystone.

Keystone-Specter-4
Keystone-Specter-5

- Option 2: Via File

1) Insert the microSD card into Keystone > Touch [Menu] > [Watch-Only Wallet] > Select [Generic Wallet] > Touch [•••] > Select [Export Wallet] > Touch [touch here…] > [Export].

Keystone-Specter-6

2) Take out the MircoSD card from your Keystone and insert it into a PC/Mac.

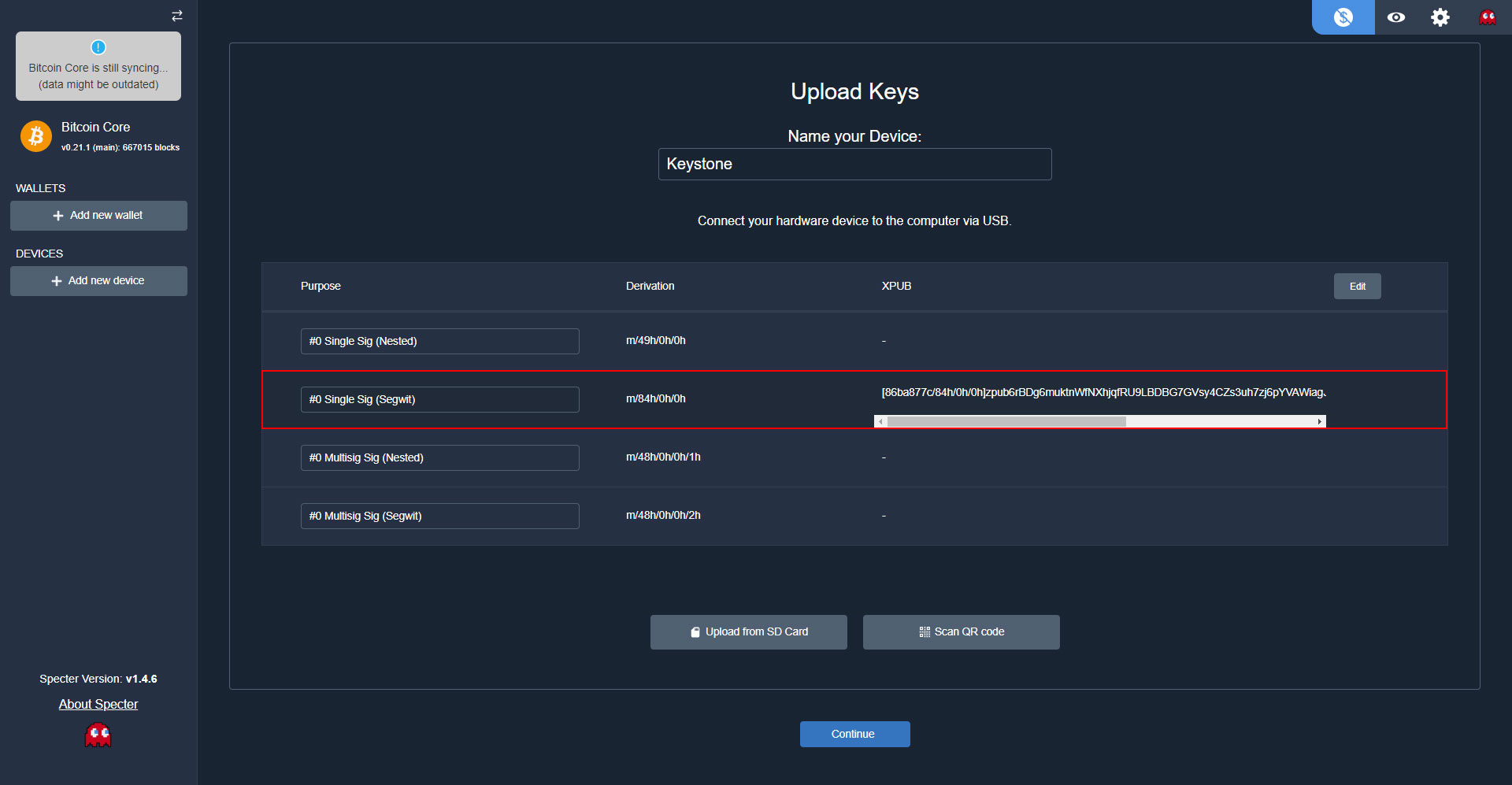

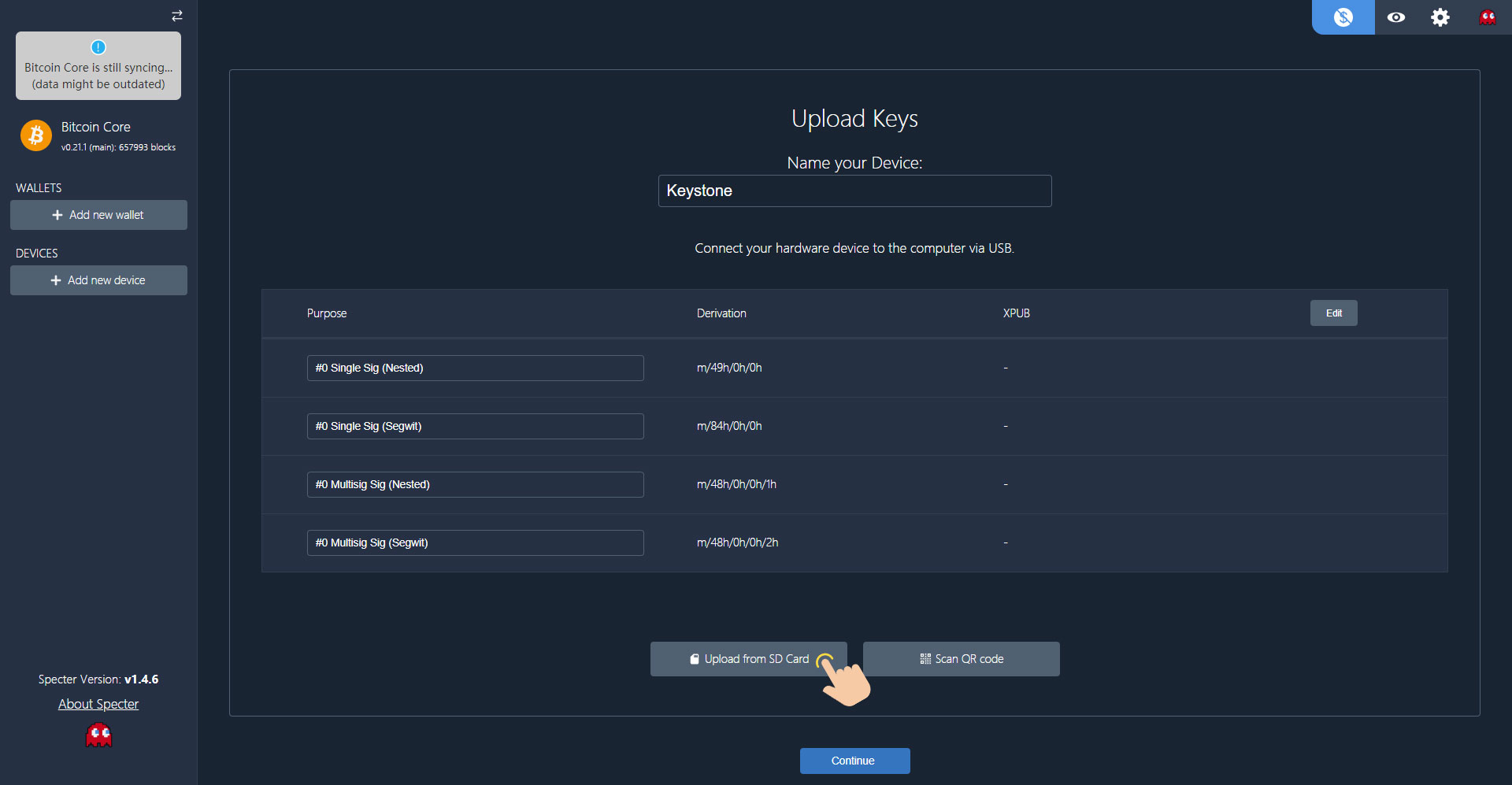

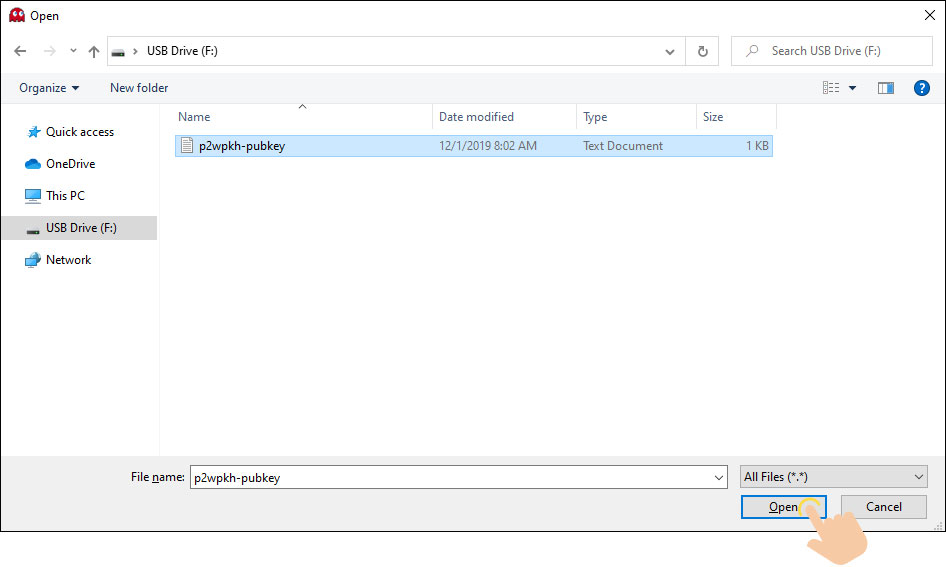

3) On Specter: Click on [Uplaod from SD Card], then select and open the [p2wpkh-pubkey.txt] file exported from Keystone.

Keystone-Specter-7
Keystone-Specter-8
Keystone-Specter-9

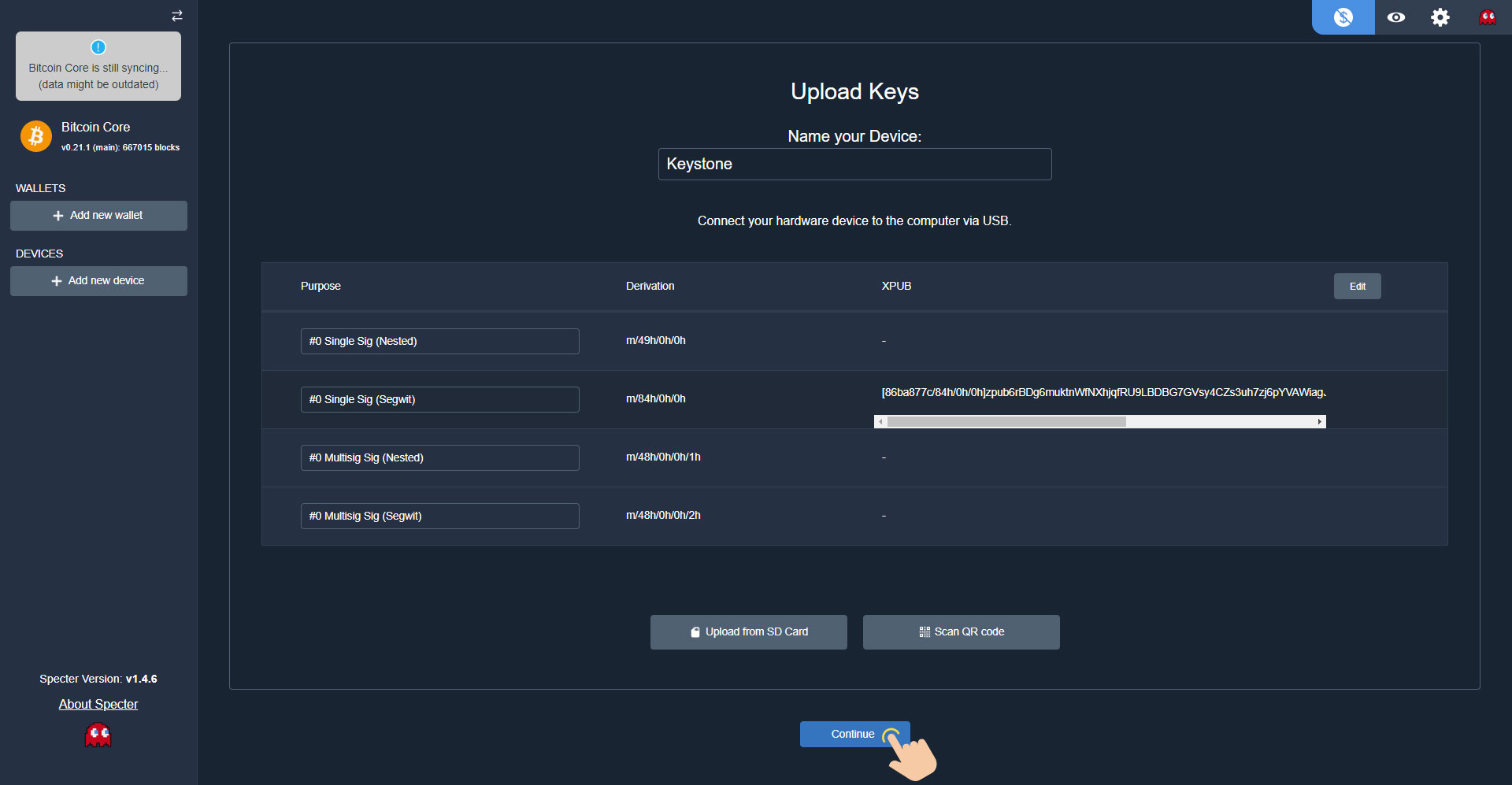

3. Click [Continue], add Keystone successfully.

Keystone-Specter-10
Keystone-Specter-11

B. Add Keystone Simple Wallet on Specter

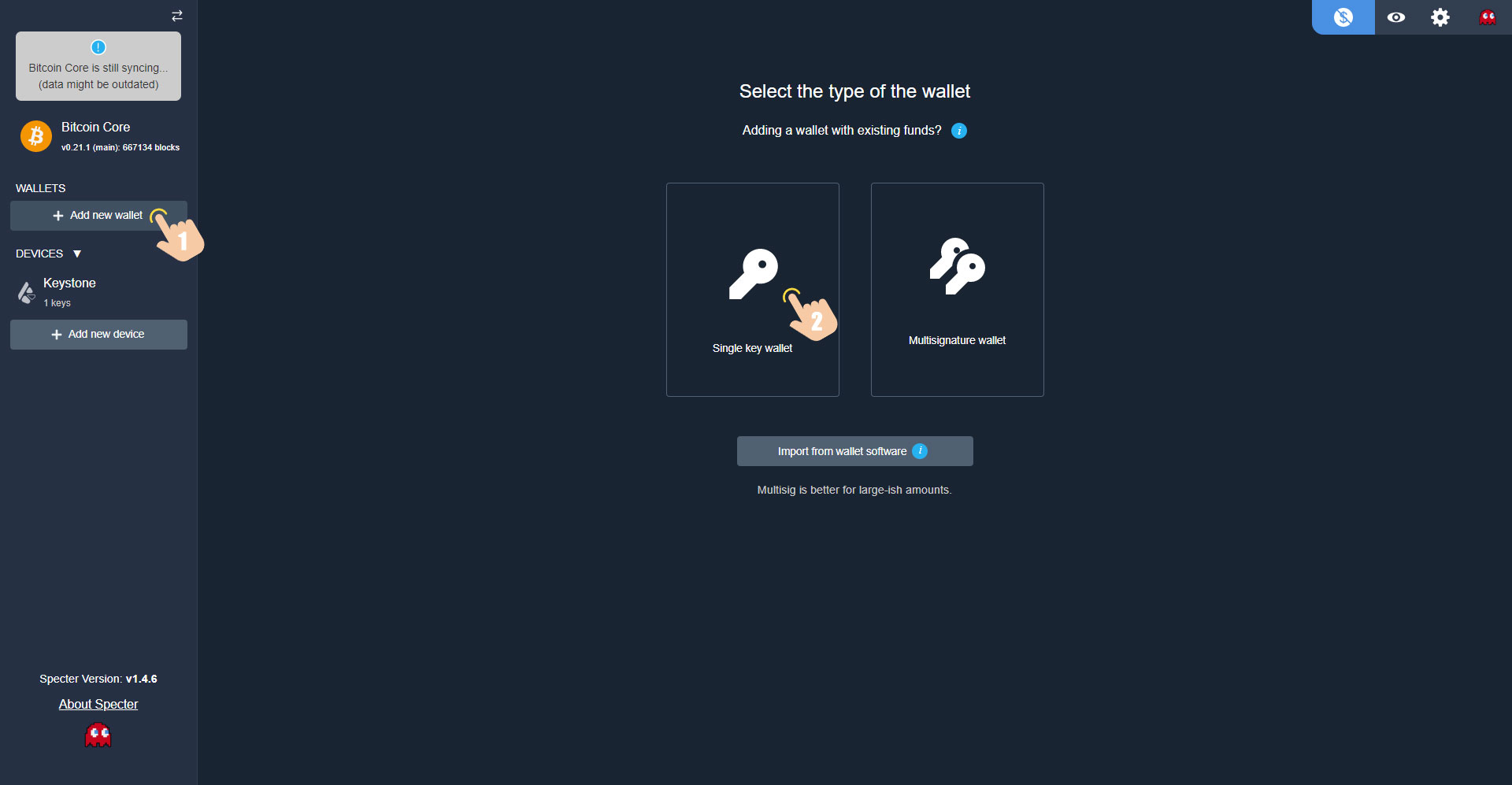

1. Click [+ Add new wallet] on Specter and select [Single key wallet].

Keystone-Specter-12

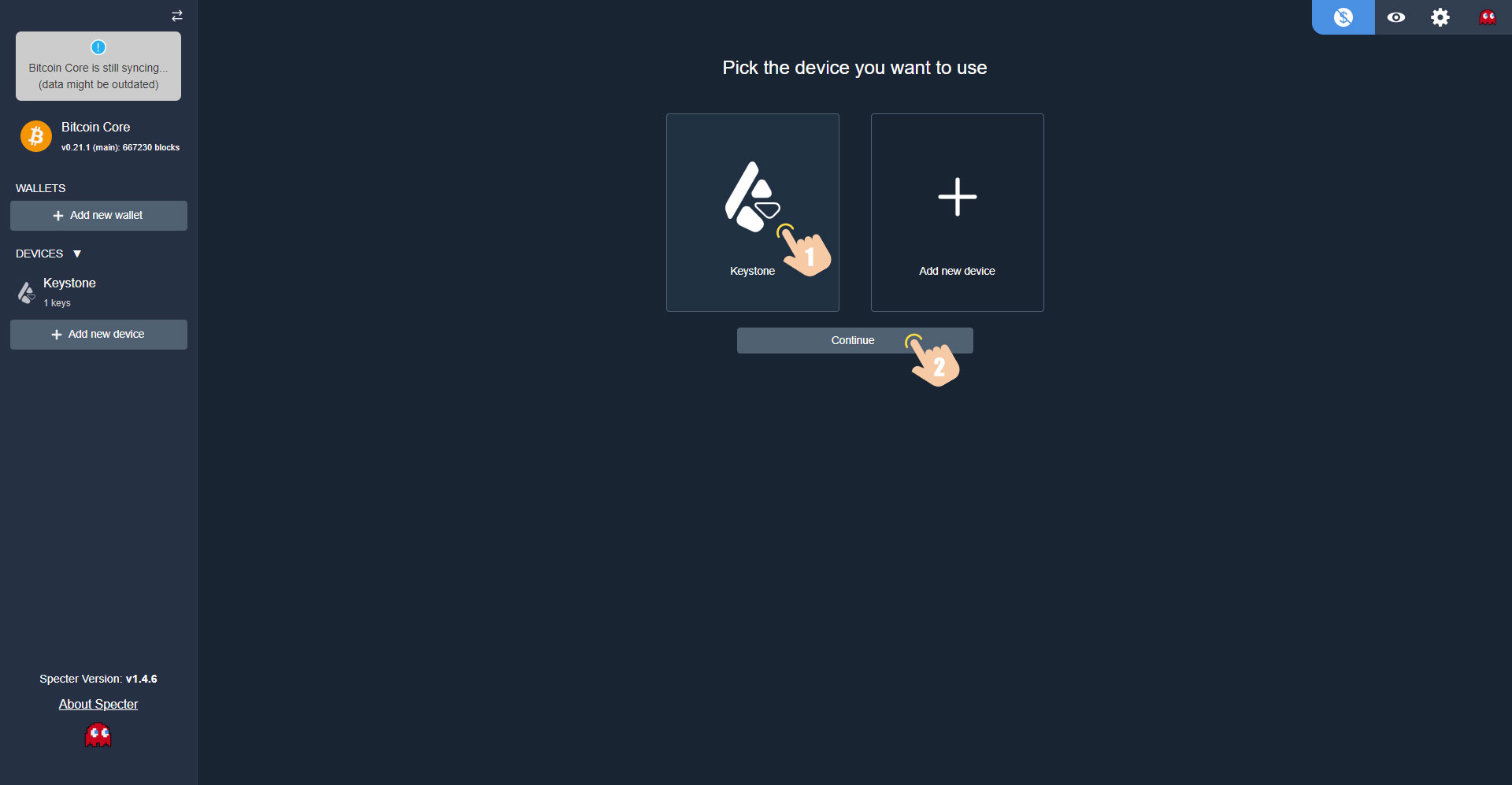

2. Select the [Keystone] device and click [Continue].

Keystone-Specter-13

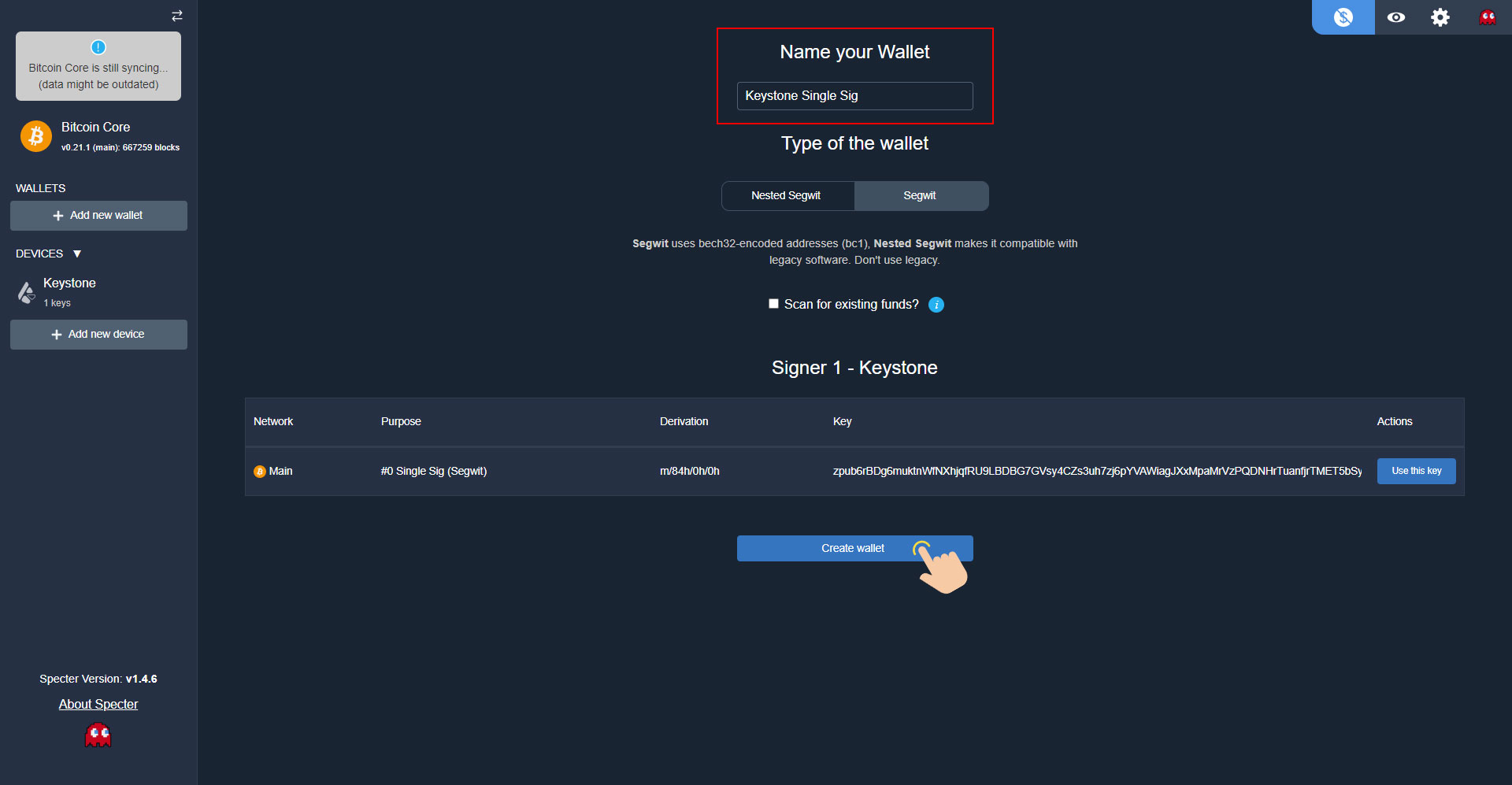

3. Set the wallet name and click [Create wallet].

Keystone-Specter-14

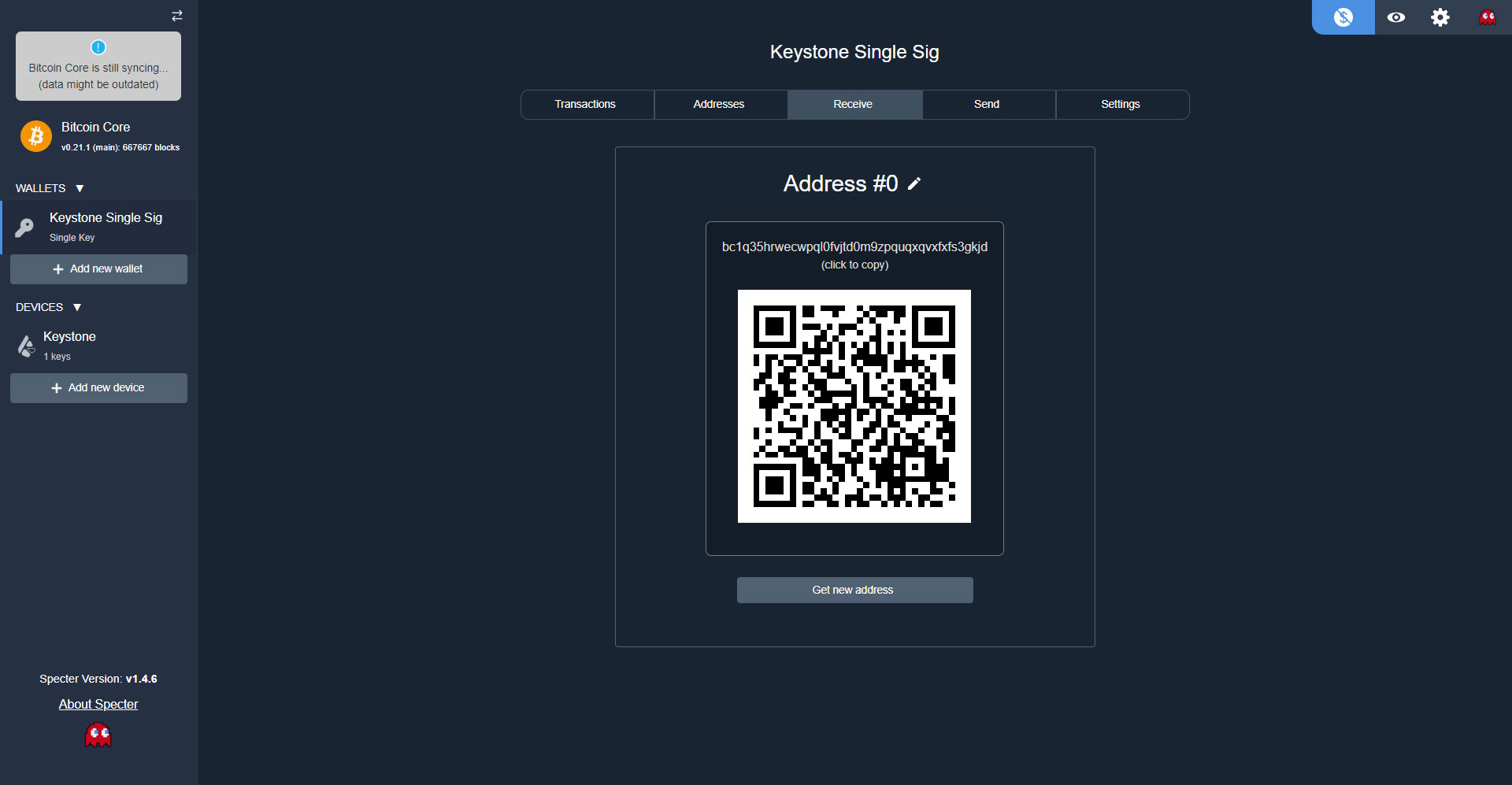

4. Add Keystone simple wallet successfully.

Keystone-Specter-15

III. Sending and Receiving Assets with Specter Wallet

A. Receiving Assets

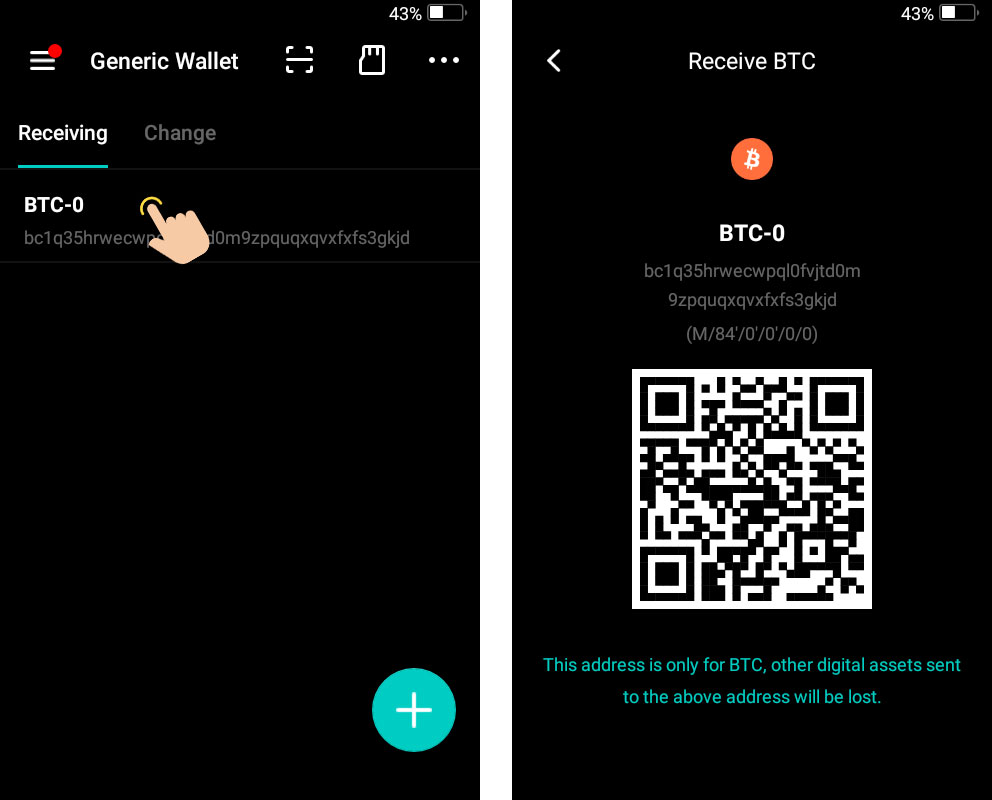

1. On Keystone: Touch [Addresses] to display the receiving addresses.

Keystone-Specter-16

2. On Specter: Select your wallet (e.g. Keystone Single Sig Wallet) > Click on [Receive] to display the receiving address.

Keystone-Specter-17

B. Sending Assets

1. Create a Transaction with Specter

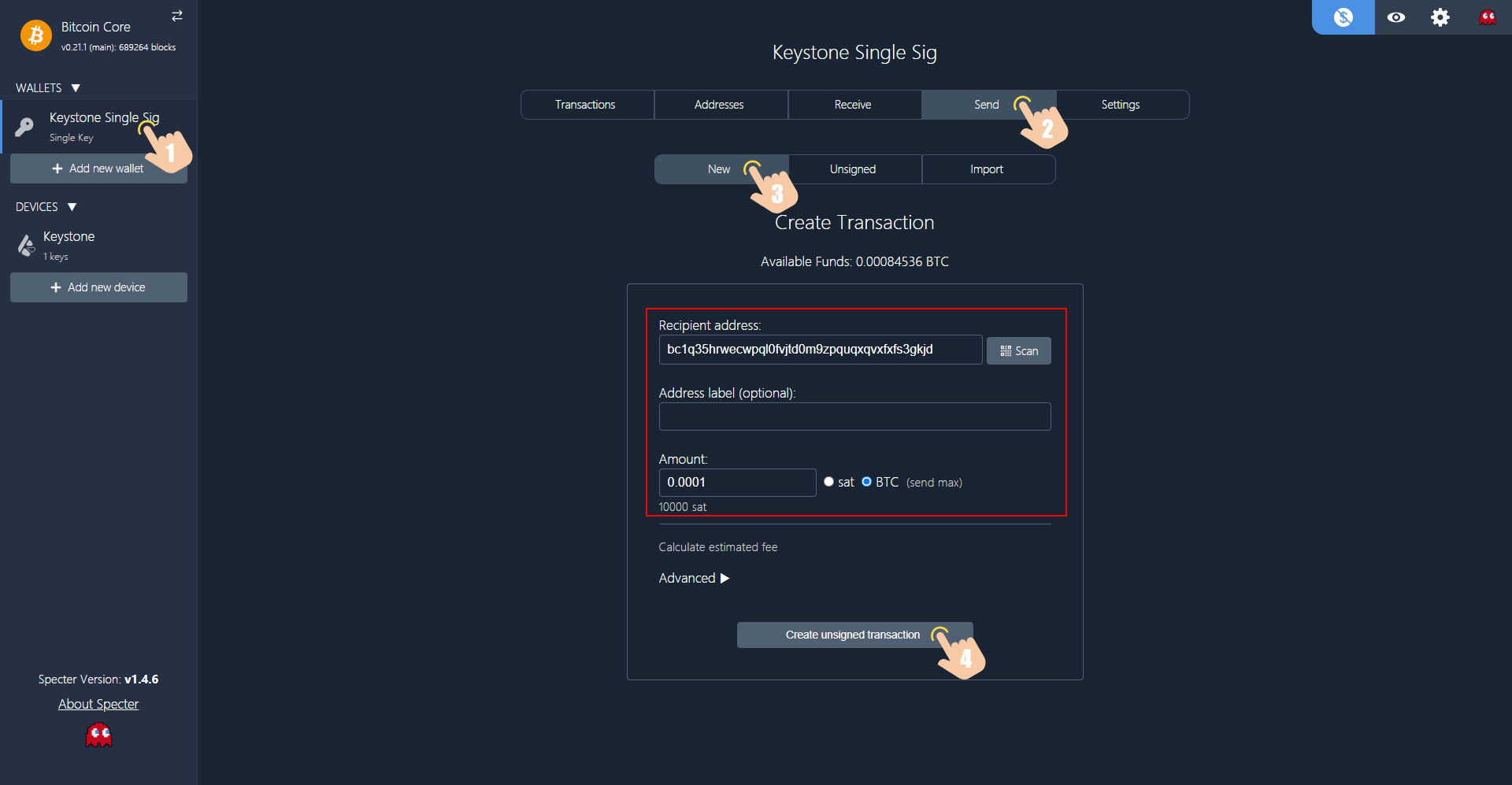

1) Select your wallet (e.g. Keystone Single Sig Wallet) > Click one [Send] > [New] > Input the recipient address and amount > [Create unsigned transaction].

Keystone-Specter-18

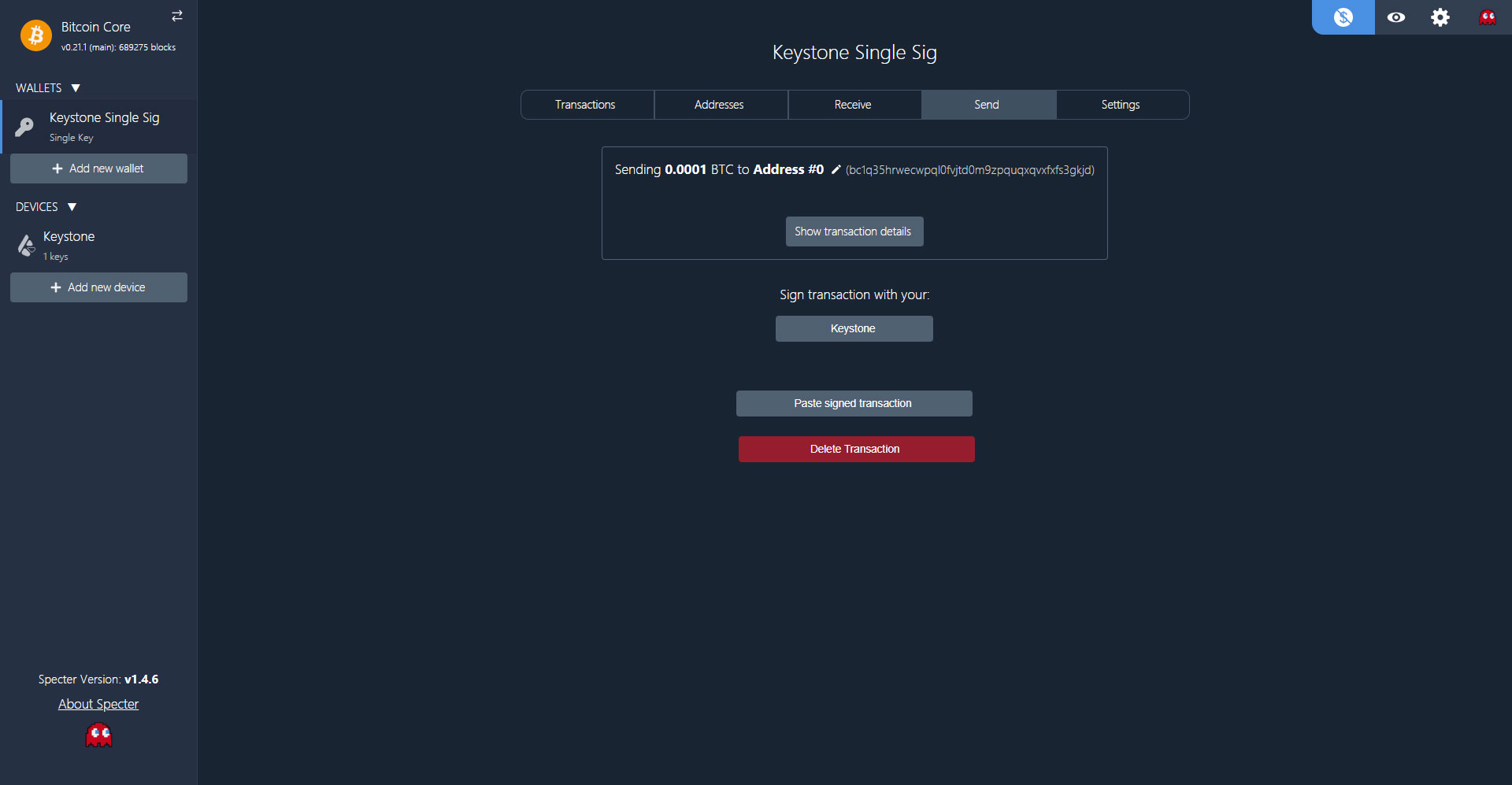

2) Create the transaction successfully.

Keystone-Specter-19

2. Sign with Keystone Hardware Wallet

You can choose to sign the transaction on Keystone via a QR code or MircroSD card.

- Option 1: Via QR code

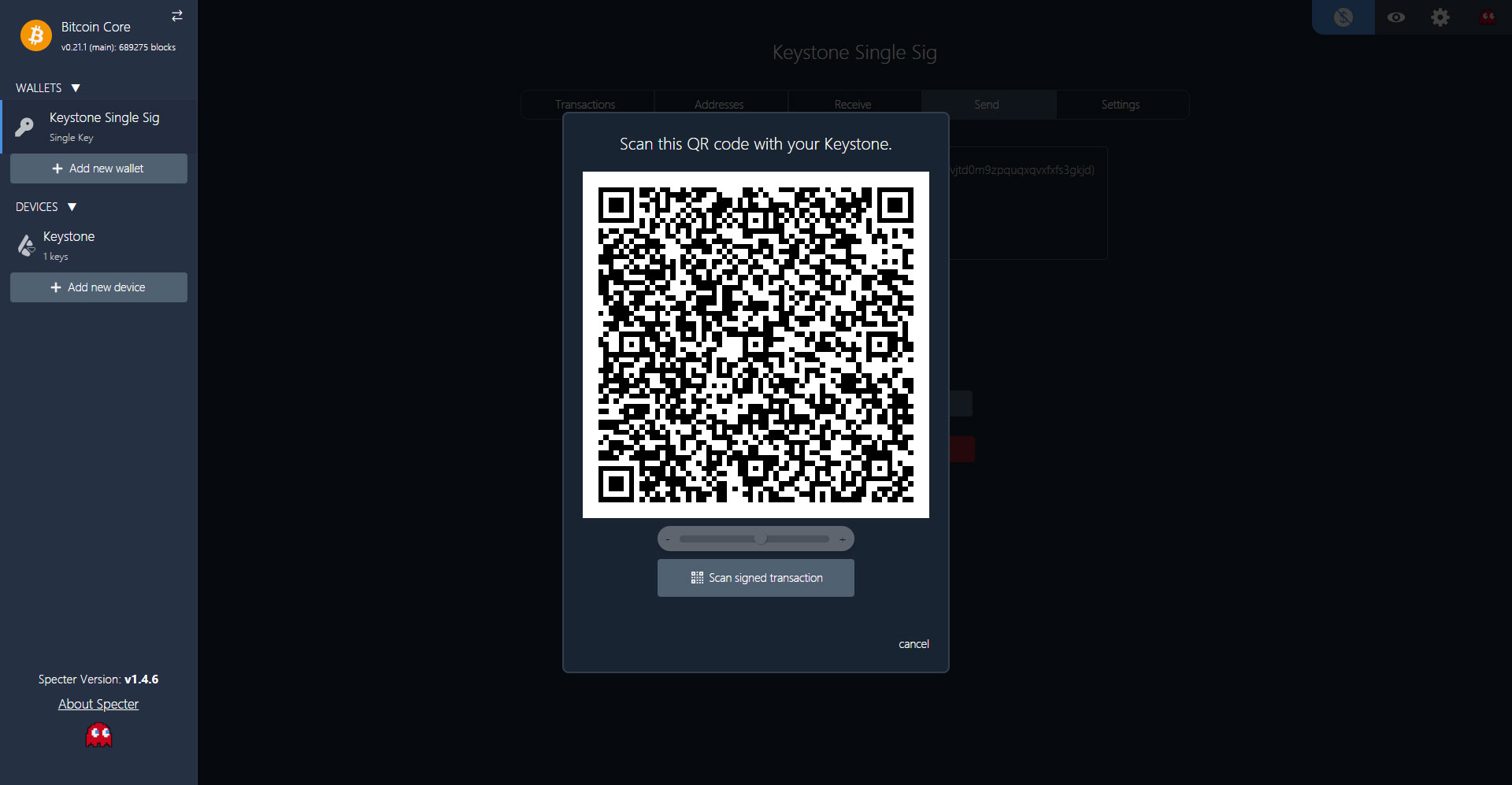

1) On Specter: Click on [Keystone] > [Sign with QR codes] > Specter displays the unsigned transaction data inr a QR code format.

Keystone-Specter-20
Keystone-Specter-21
Keystone-Specter-22

2) Keystone > Press the [Scan] icon > Scan the QR code shown on the Specter interface > [Sign] > Enter the password and press [Confirm].

Keystone-Specter-23
Keystone-Specter-24

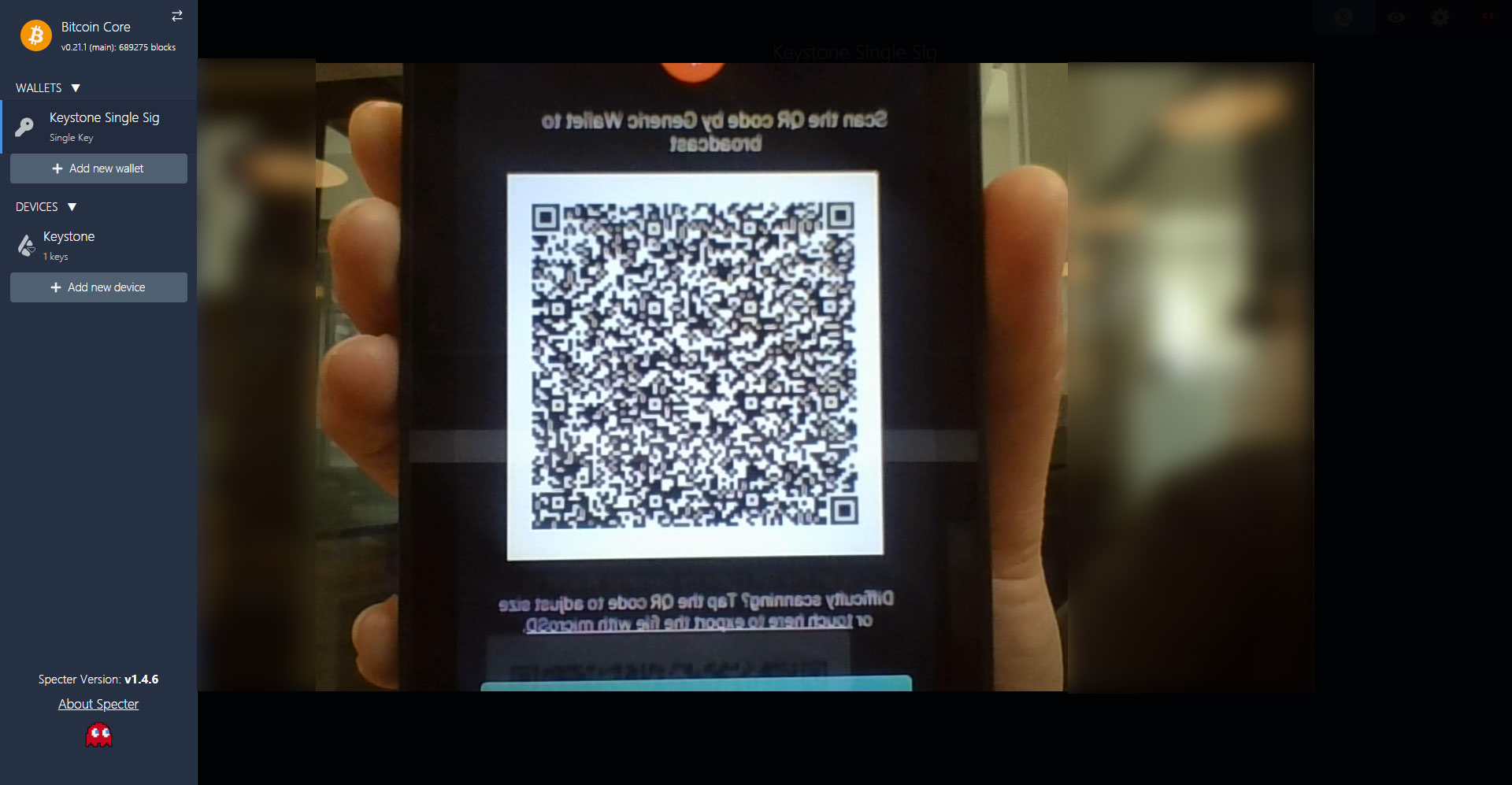

3) On Specter: Click on [Scan signed transaction] > Scan the QR code shown on Keystone.

Keystone-Specter-25
Keystone-Specter-26

OPTIONAL: If your computer device has no camera, You can also sign transactions with the mircoSD card file.

- Option 2: Via mircoSD card file

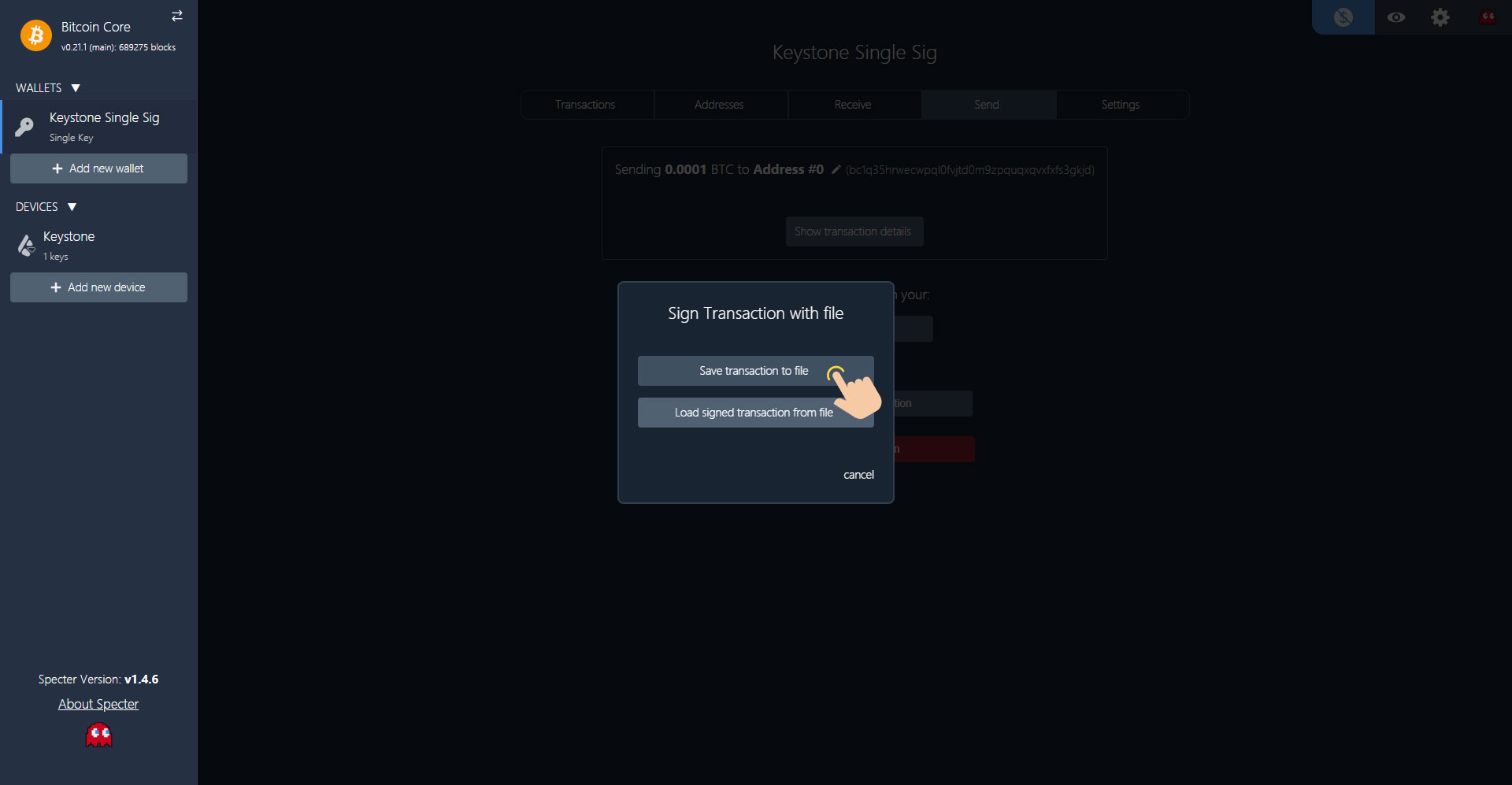

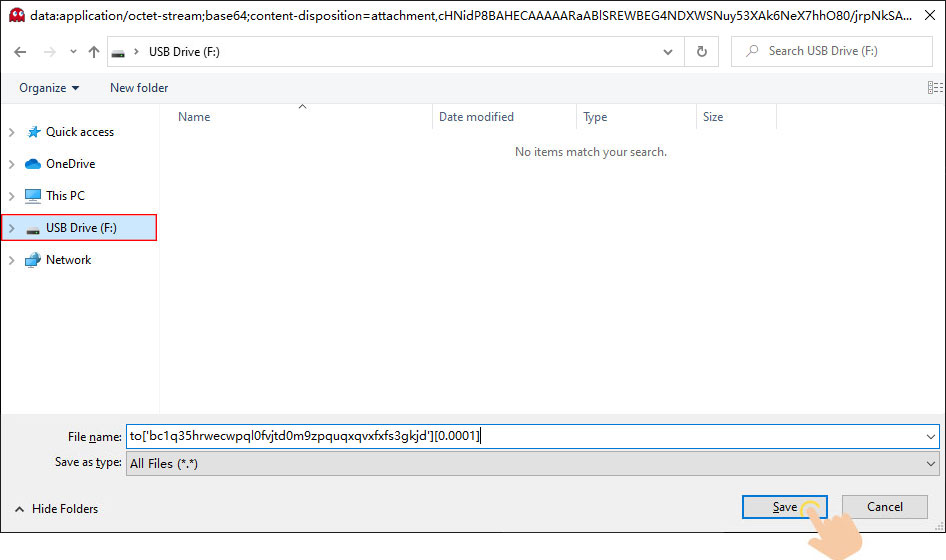

1) On Specter: Click on [Keystone] > [Sign with SD Card file] > [save transaction to file] > click [Save] to save the unsigned transaction file to a MicroSD card.

Keystone-Specter-27
Keystone-Specter-28
Keystone-Specter-29
Keystone-Specter-30

2) Take out the MircoSD card from a PC/Mac and insert it into your Keystone.

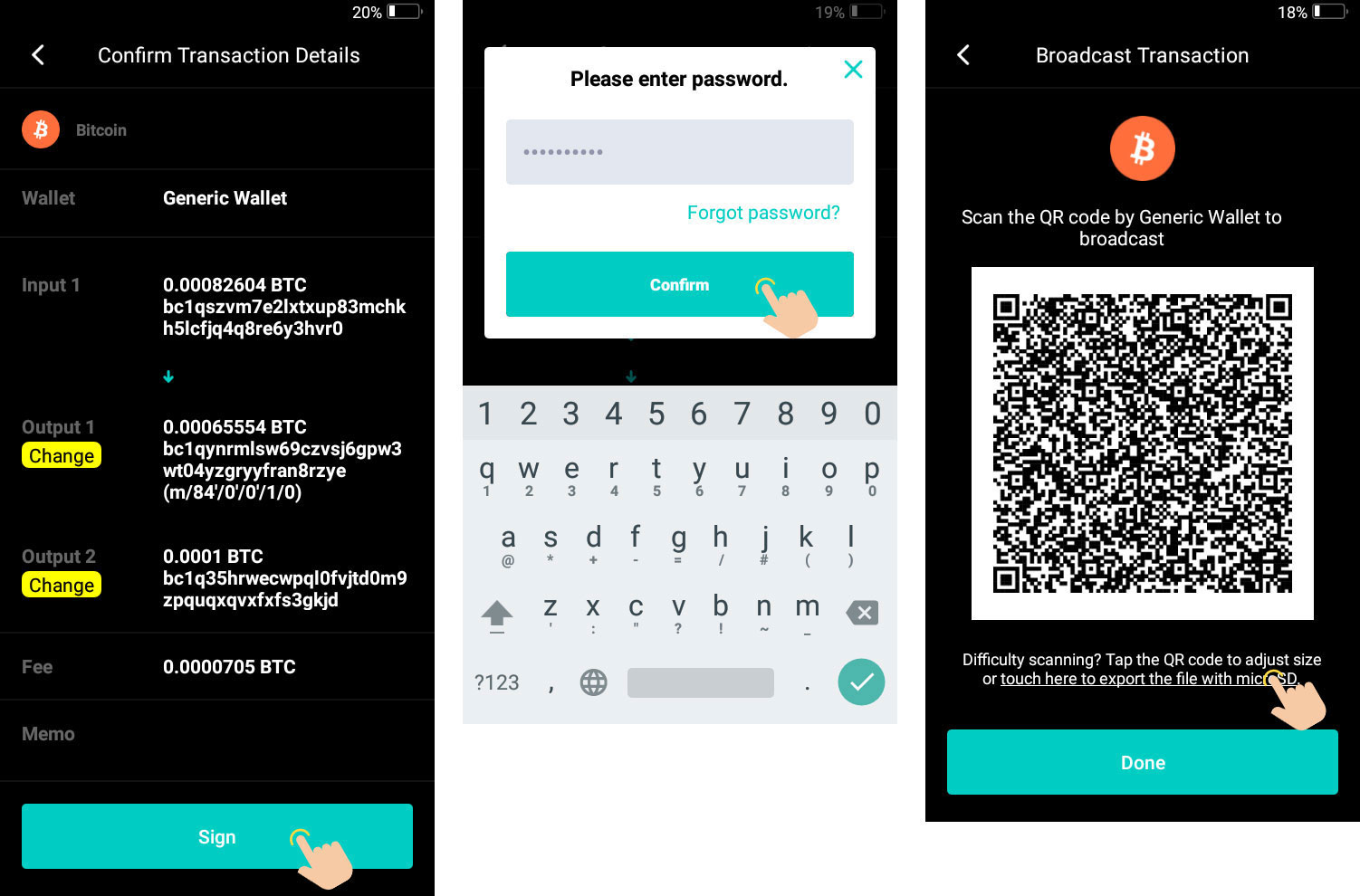

3) On Keystone: Press the [microSD card] icon > Select and open the unsigned transaction file > [Sign] > Password verification > Press [touch here...] to export signed transaction file to MicroSD card.

Keystone-Specter-31
Keystone-Specter-32
Keystone-Specter-33

4) Take out the microSD card from your Keystone and insert it into PC/Mac.

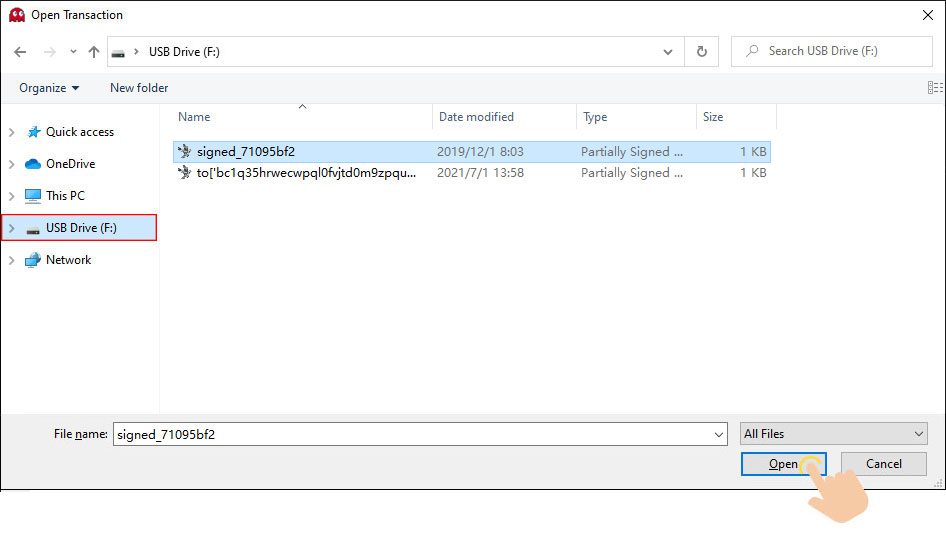

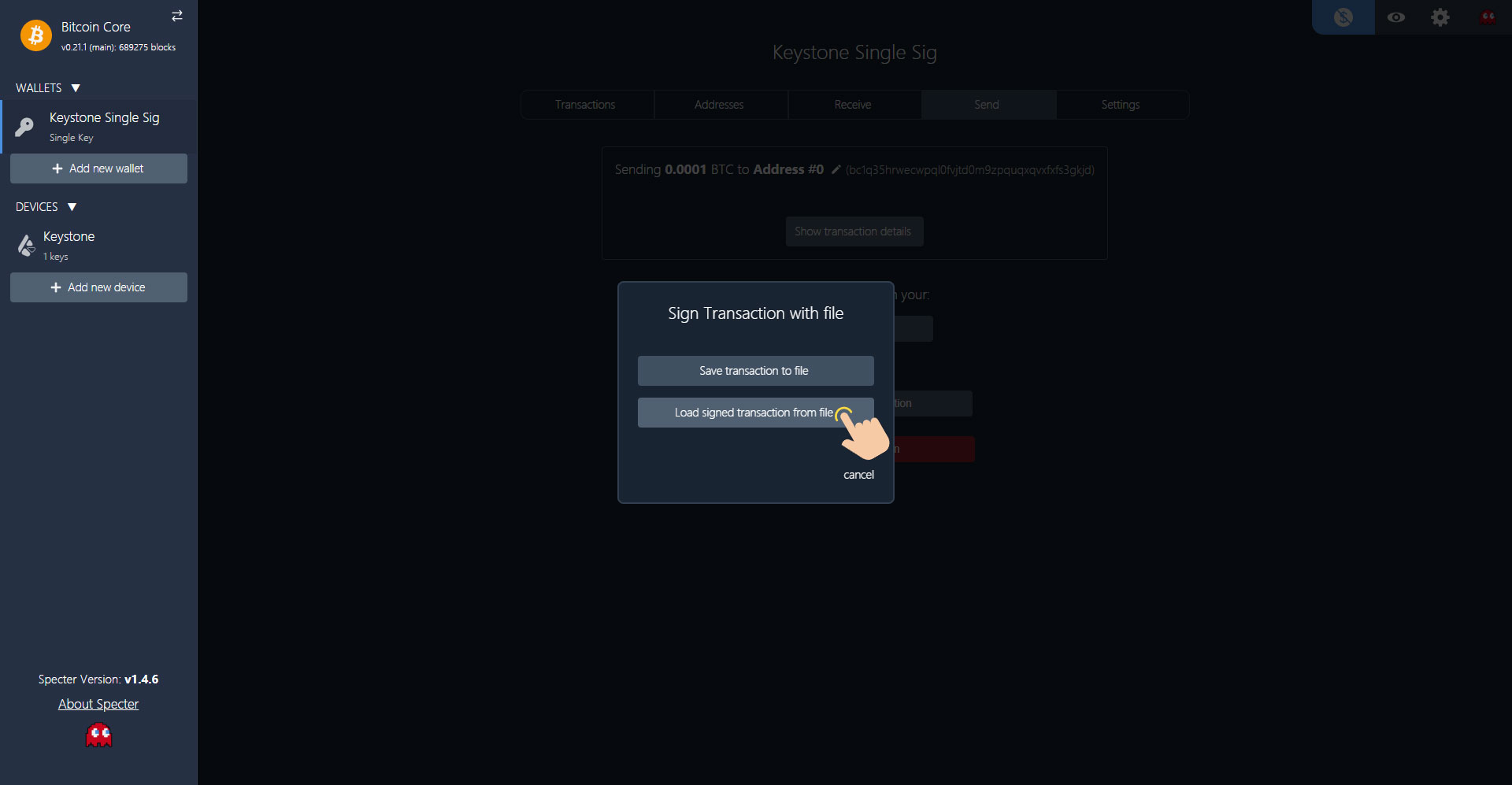

5) On Specter: Click on [Upload signed transaction], then select and open the signed transaction file exported from Keystone.

Keystone-Specter-34
Keystone-Specter-35

3. Broadcast transaction on Specter

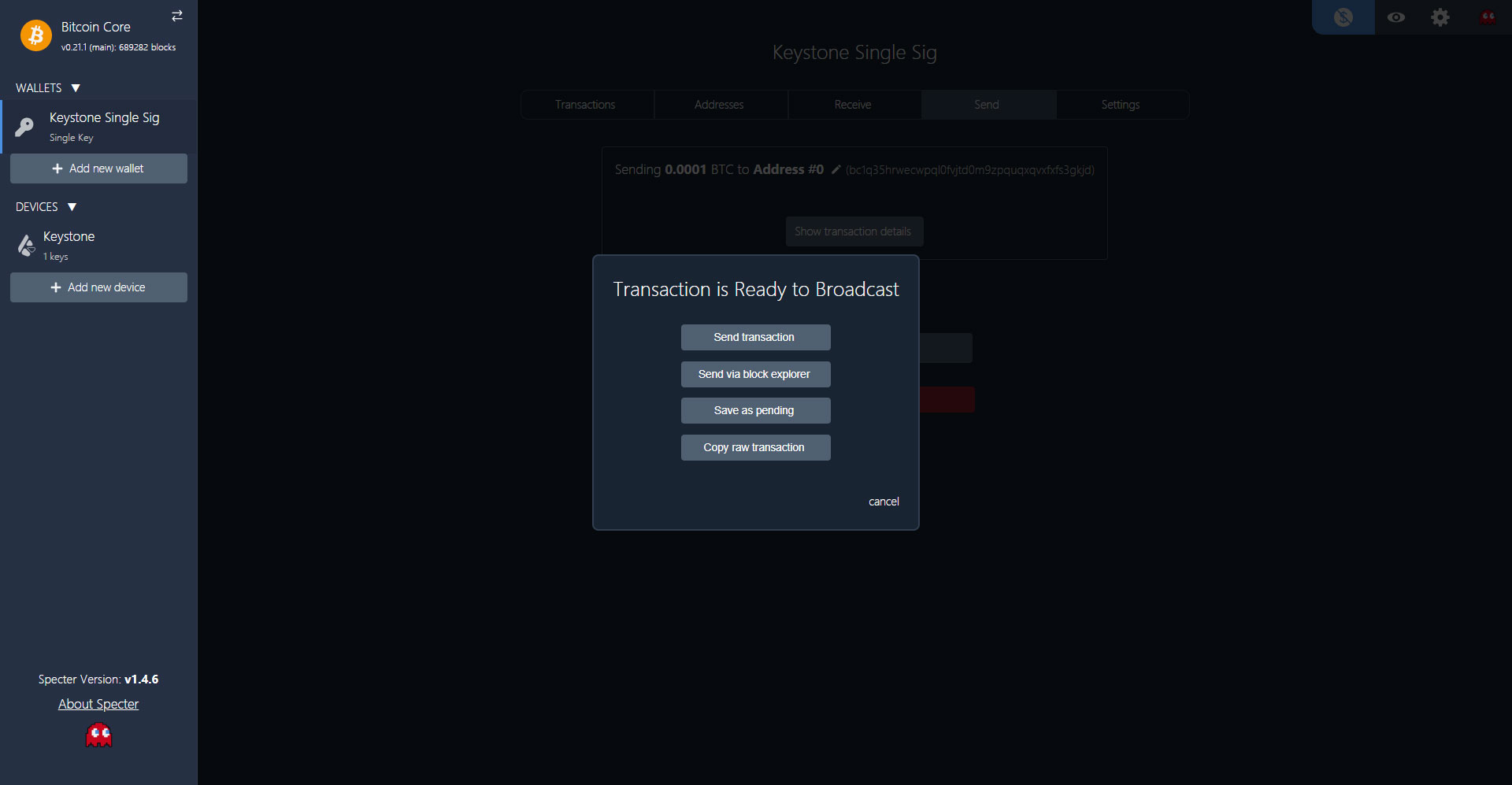

Keystone signed successfully and you can choose to broadcast the transaction immediately or later.

Keystone-Specter-36

Instructions recommended:

Specter 2/3 PSBT Multi-SigSpecter 2/2 PSBT Multi-Sig
